DIODE TECHNOLOGY
PRODUCTS > LASER LED

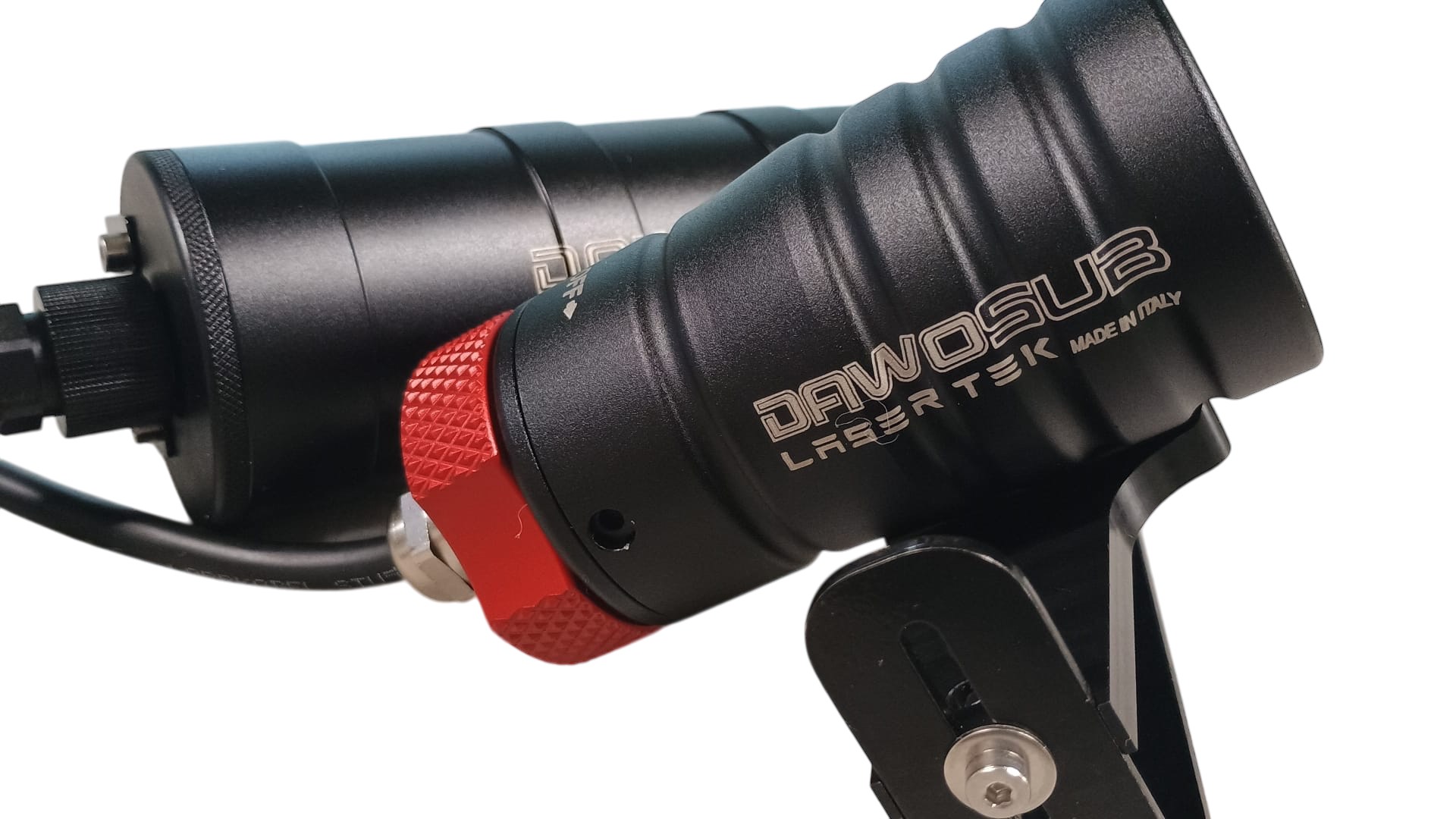

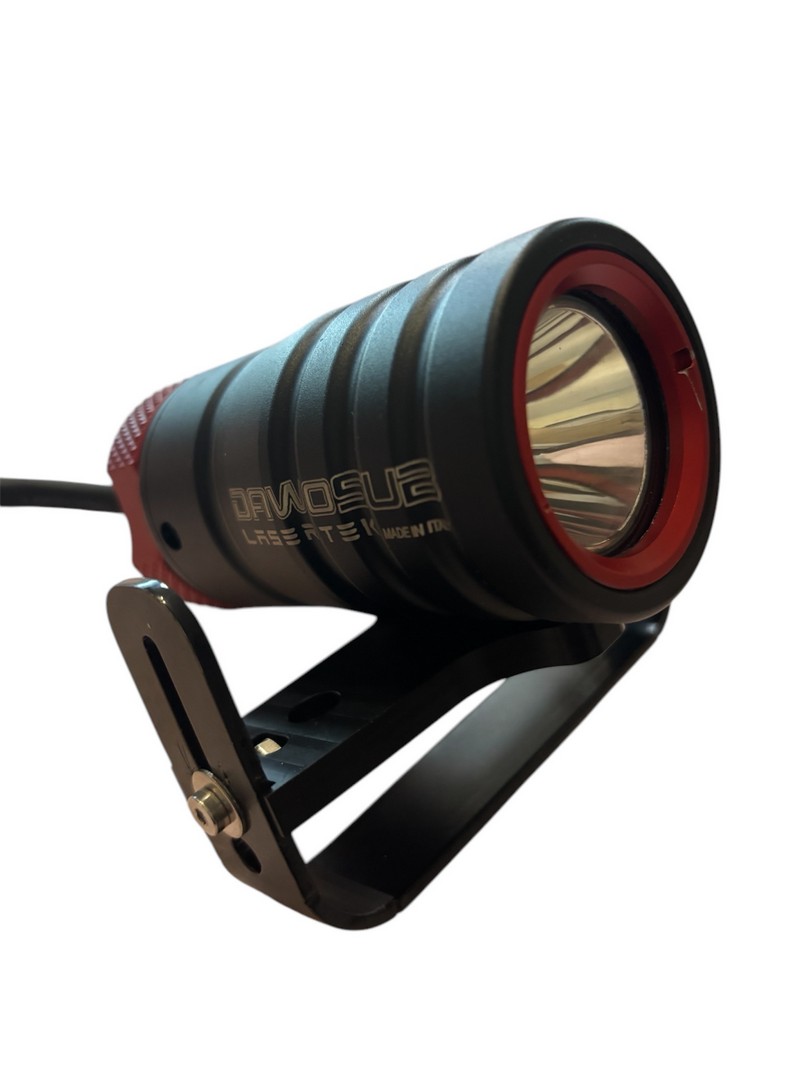

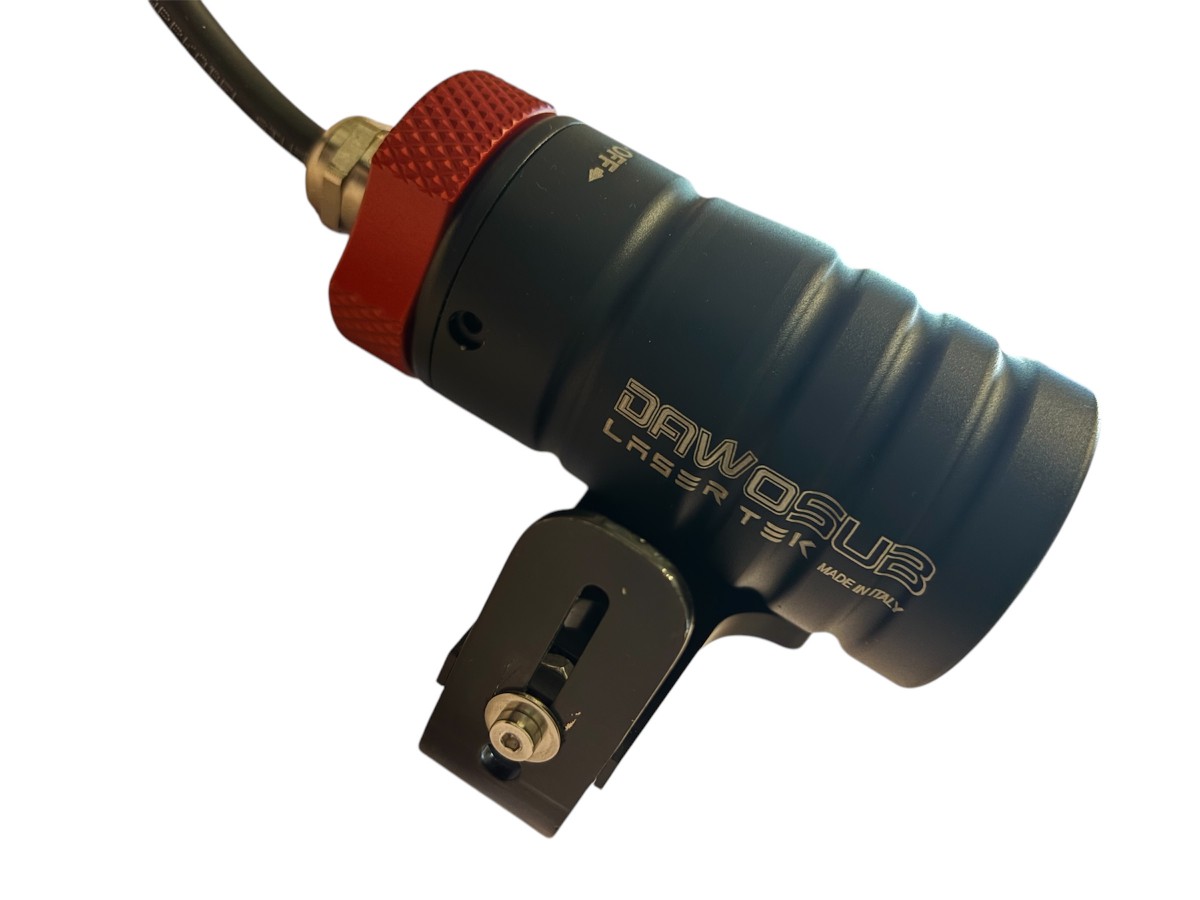

HEAD LASER TEK
Available from September 2025
TECHINICAL DATA:

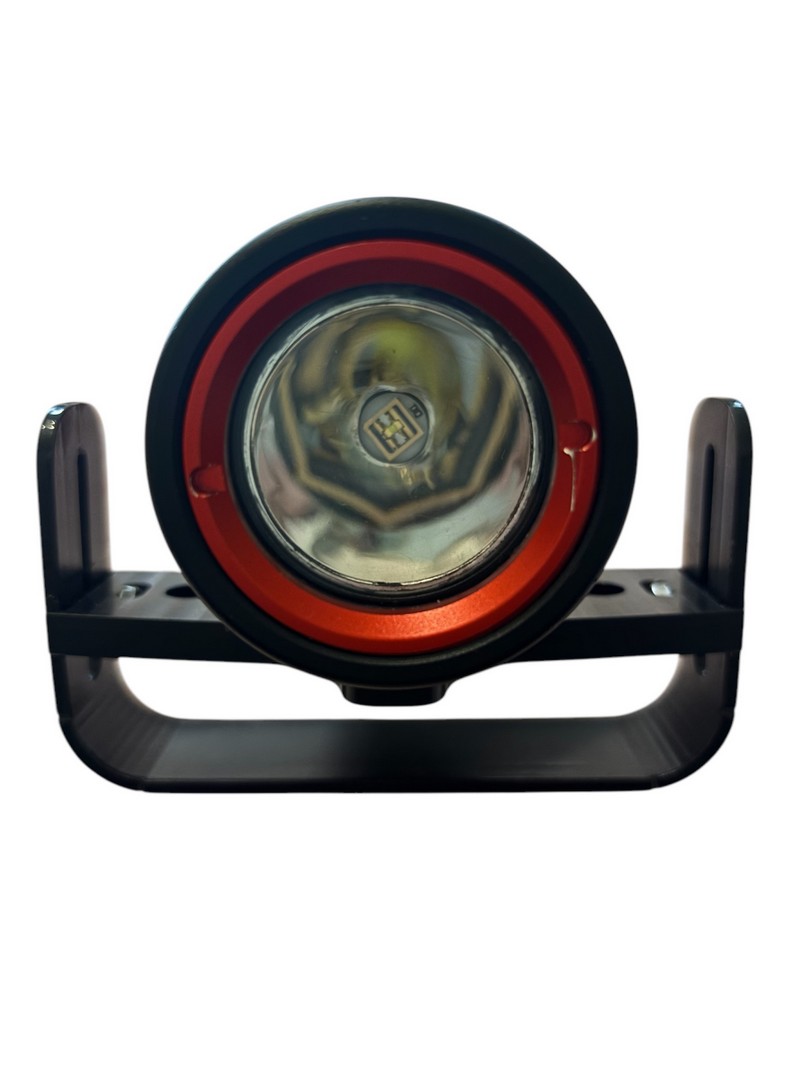

- 1 x DIODE
- Luminous Flux: 1000 Lumen Laser
- Power
- Focal Angle: 6°
- Power supply: 12V Li-ion
- Battery Pack: System compatible with all our 12V 10 and 20Ah canisters
- Duration:
with our 20Ah canister about 8 hours "max power"
(*to be considered double at medium power)
- Operating depht max 150 meters

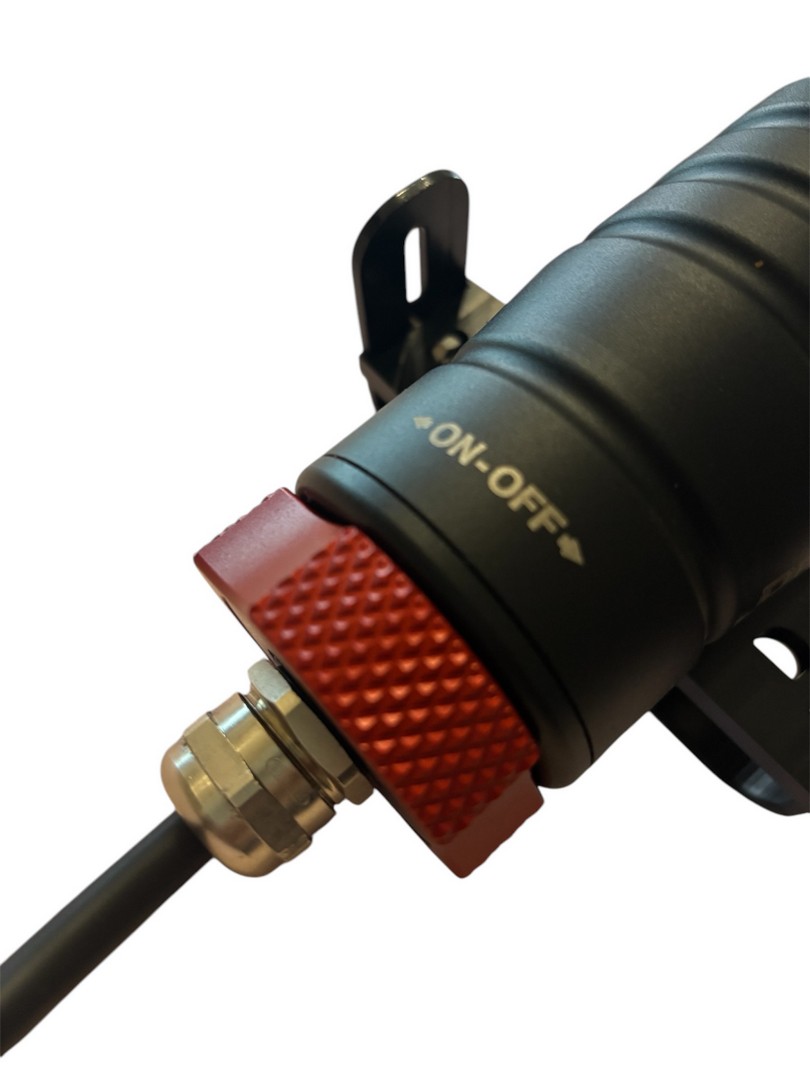

- Elettromagnetic type contact

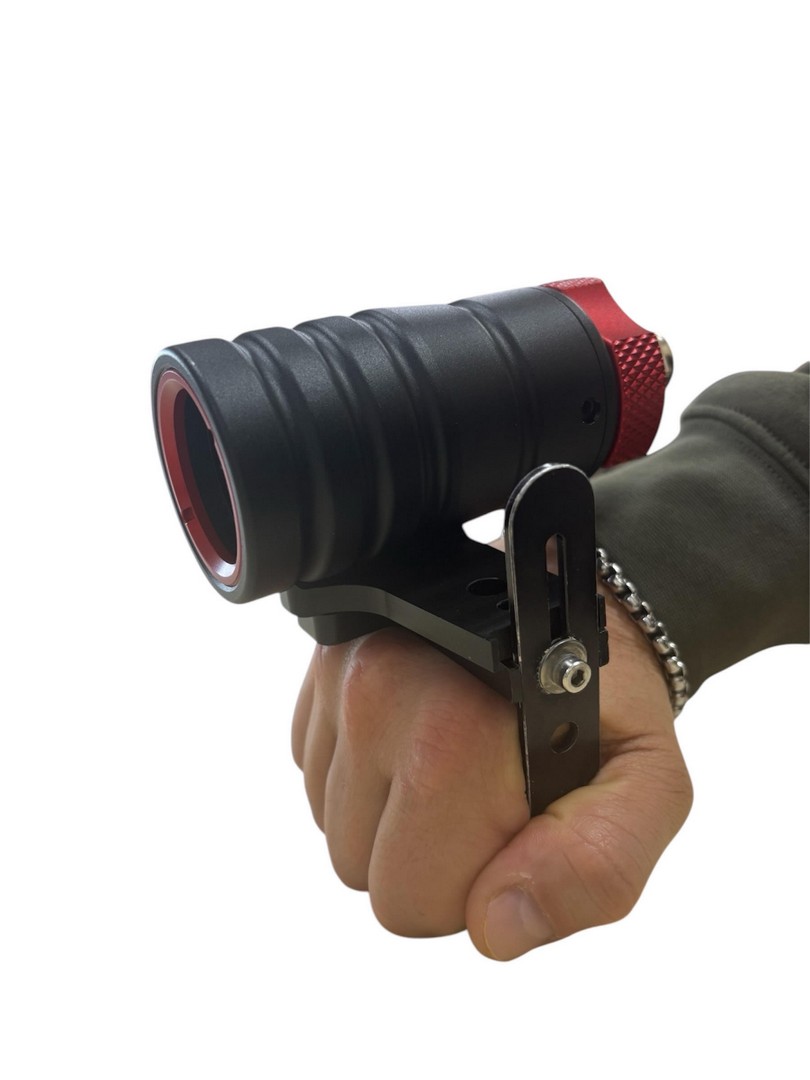

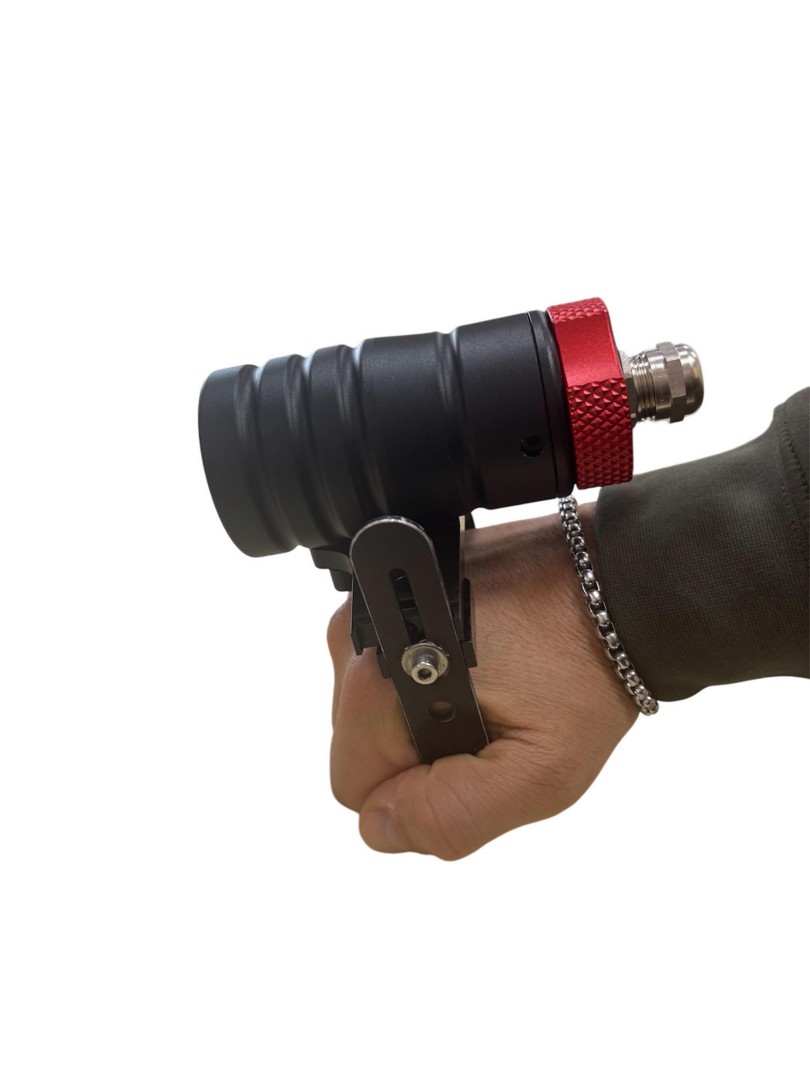

- Goodman Handle
- Structure entirely in Aluminium/Delrin e Steel
- Scratch-resistant Hard anodizing treatment at 35 micron
- Weight: 630 gr
- Measures: Length 110mm Diameter 55mm
DESCRIPTION
After more than 2 years of study and design, the first laser diode technology lighting head has finally seen the light.
An absolute novelty in the entire world underwater panorama, especially for technical equipment;
This special Diode, supported by electronics redesigned to new specifications, has allowed a drastic reduction in the diameter of the head, obtaining, however, such a lighting power that, with the same consumption, is unmatched!
The smaller dimensions have also allowed a substantial reduction in weight, currently around 600gr.
This incredible and brand new product, unique in its kind, is designed especially for users who dive in caves and in obstructed environments with a light beam angle of around 6°;

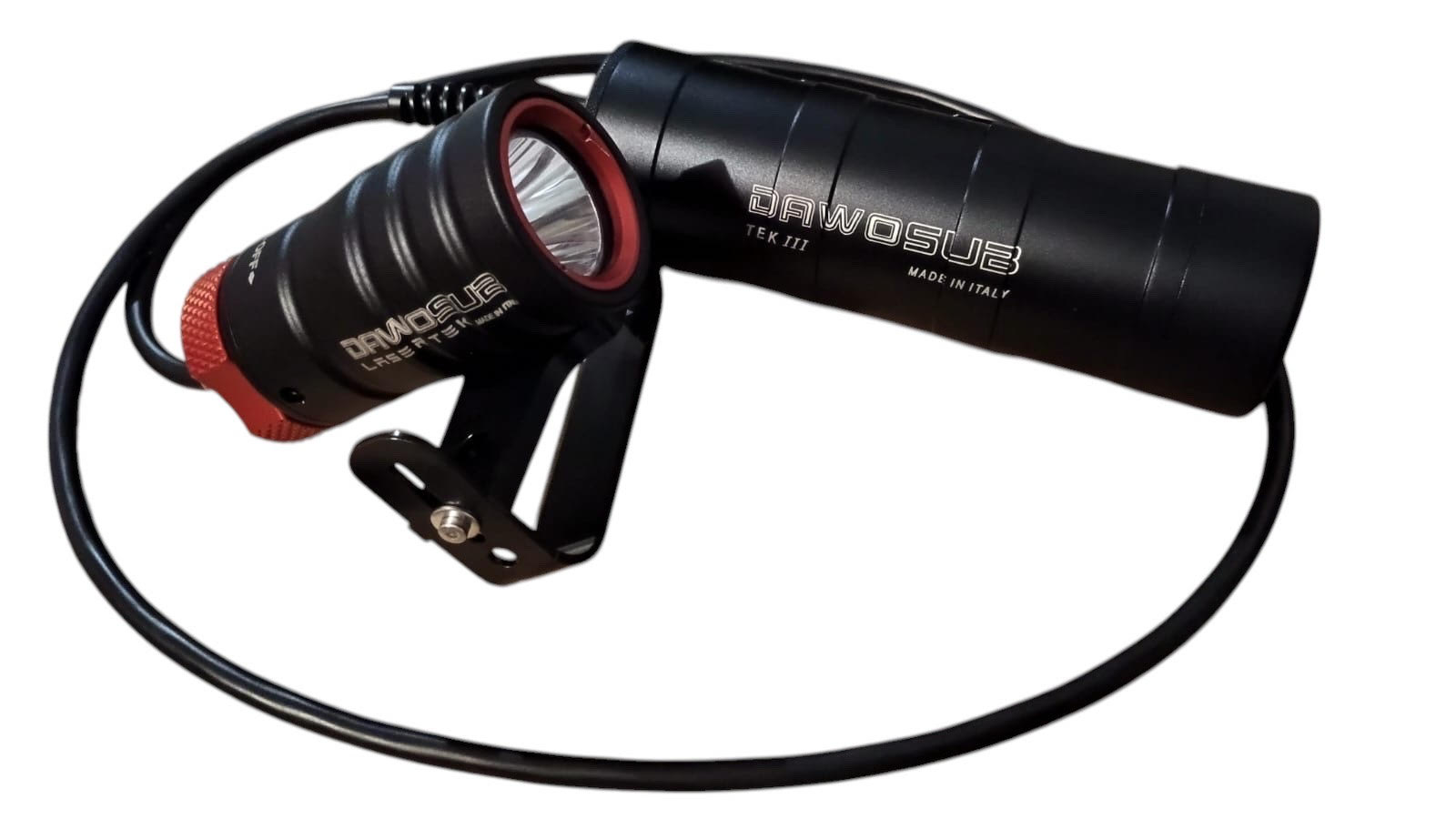

For example, with our 10Ah Canister, which is usually combined with our TEK3, its duration far exceeds 4 hours at maximum power, naturally doubles if we use it at 50%.
This brand new technology is the natural evolution for underwater lighting... we have gone from HID, then to LED and now we have finally arrived at obtaining very high performance in terms of illumination and density and, on the other hand, increasingly reduced weight and consumption.
